RPD-1178, RPD-1178B, RPD-1178C, 19" 1U Rack Mount Drawer - 17" LCD Monitor / Keyboard / 8-PORT KVM / Choice of Trackball (RPD-1178B) or Touch Pad (RPD-1178C) -------- Not Available -------- See Below for Comparable Replacement

RPD-1178, RPD-1178B, RPD-1178C, 19" 1U Rack Mount Drawer - 17" LCD Monitor / Keyboard / 8-PORT KVM / Choice of Trackball (RPD-1178B) or Touch Pad (RPD-1178C) -------- Not Available -------- See Below for Comparable Replacement

$1,798.75 USD
$1,798.75 USD
Sale Sold out
Shipping calculated at checkout.
Discontinued
1U, 17" LCD, Keyboard, Touchpad & 8-Port KVM
Computer Interface

Please note:  The RPD-1158/ 1158B is no longer in production.  The closest replacement we have is a 17" LCD Rackmount 1U Drawer, Touchpad & 8-Port KVM  made by ACME portables. Click link for full product description.

SMK980-17, ACME Portable SMK 980 1U Rackmount LCD Monitor, Keyboard, Touchpad & 8-Port KVM, 17" LCD VGA Single Display @1280x1024

Also Note: The 8-port KVM comes with 8 cables. When you specified USB or PS2, we will ship all 8 cables in the same interface. However, if you would like to order a mix of USB and PS2 cables, for example, 3xUSB & 5xPS2, please email us or leave comments in shopping cart under "Order special instructions". Thank you.

-----------------------------------------------

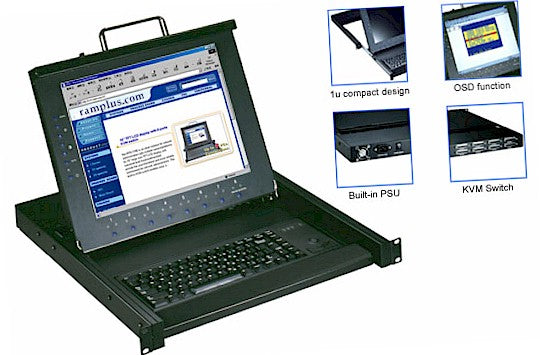

The RPD-1178 is an ideal solution to optimize
space utilization by controlling the system in just 1U rack space.  It
provides industrial level input devices for space-critical
environments.  Flight control towers, server farms, and factory
automation are just a few of many applications for which the RPD-1178 is
perfect.

With the RPD-1178, you can control up to
eight platforms and easily expand the connections up to 512 systems with the
combination of KVM switch boxes.  The RPD-1178's 17" TFT LCD
display, keyboard, touchpad or trackball provide a reliable and user
friendly input environment.  All of these functions are integrated into
a 19" wide and 1U high space with rugged construction design to achieve
ultra space saving and high availability for industrial / network
applications.


Features:

  • High brightness 17" LCD TFT display
  • support XGA (1280x1024) resolution
  • 15 pin output
  • Durable keyboard with choice of trackball or touchpad
  • OSD function (On Screen Display) for LCD display
  • Built in power supply
  • Built in KVM switch function for easy
  • controlling and monitoring of up to 8 residing servers/ platform, or upto 512 systems by cascading (RPD-1178 ONLY)
  • KVM switch control: front panel switch
  • hotkey and OSD control
  • Viewing Area (WxH) 13.3" x 10.64"
  • Dimension (WxHXD) 17.34 x 1.73 x 21.65"
  • Contrast Ratio 400:1
  • Power Consumption: 26.25W (typical), 36W (max)
