RDE-RMDDU190/ RMDDU 19, ACME Portable 2U Rackmount Dual 19" LCD Monitors, Keyboard, Touchpad & 19" LCD VGA Dual Display @1280x1024 VGA/ DVI/ DP (USB) Interface

RDE-RMDDU190/ RMDDU 19, ACME Portable 2U Rackmount Dual 19" LCD Monitors, Keyboard, Touchpad & 19" LCD VGA Dual Display @1280x1024 VGA/ DVI/ DP (USB) Interface

$4,298.75 USD
$4,298.75 USD
Sale Sold out
Shipping calculated at checkout.

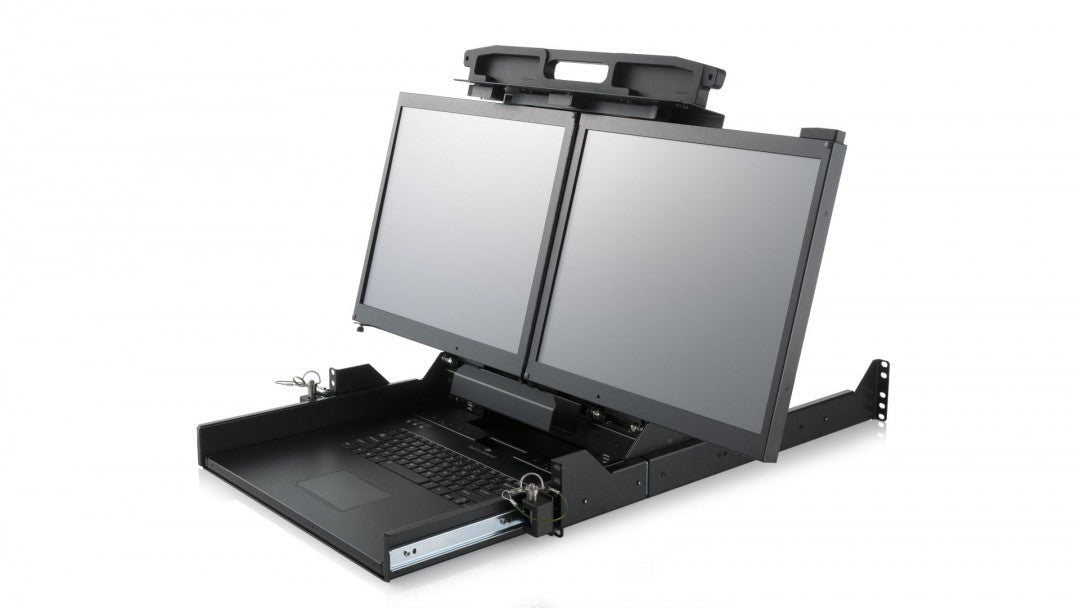

The RMDDU 19 is a rugged 2U rackmount drawer with dual 19" LCD monitors. The displays fold together, rotate, and slide in for storage.

The RMDDU 19 is a rugged 2U rackmount drawer with dual 19" LCD monitors. The displays fold together, rotate, and slide in for storage.

It is an ideal match in military transit case applications and command & control centers. The compact 2U rack-mount display drawer uses a secure all-aluminum monitor mounting and stabilization design necessary for robust government & defense, communications and industrial automation applications.

PRODUCT RMDDU 19
DISPLAY DUAL 19" SXGA 1280 X 1024
VIEWING ANGLE DISPLAYS TILT ~15° FROM VERTICAL
PORTS INTERNAL USB 2.0 HUB + 2X USB 2.0 INPUTS ON FRONT + 1X USB 2.0 INPUTS ON REAR,
ANALOG VGA, DVI-D, DISPLAYPORT FOR EACH DISPLAY
POWER SUPPLY 115/230 VAC, 50/60HZ, 100W MAX
KEYBOARD & MOUSE 101 KEYS BACKLIT KEYBOARD WITH TOUCHPAD AND ADJUSTABLE BRIGHTNESS. RESISTIVE TOUCHPAD
OPTIONAL: WATERPROOF KEYBOARD
DIMENSIONS HEIGHT: 2U - 3.46" (88MM)
WIDTH: 17.76" (451MM)
DEPTH: 25.89" (657.6MM)
WEIGHT ~45 LBS (20.5KG)
TEMPERATURE MIL-STD-810E (501.4, 502.4),
OPERATING: 0 ~ 50°C,
NON-OPERATING: -40 ~ 70°C
HUMIDITY MIL-STD-810E (507.2),
RELATIVE HUMIDITY: 5% TO 95% OPERATING, NON-CONDENSING
ALTITUDE MIL-STD-810E (500.3),
OPERATING: 15,000 FT (4571.8 M),
NON-OPERATING: 40,000 FT (12,192 M)
VIBRATION MIL-STD-810E (514.4),
OPERATING: 10 TO 500 HZ 1.04 G (RMS)
SHOCK MIL-STD-810E (516.4),
OPERATING: 15 G, 8 MS 1/2 SINE,
NON-OPERATING: 40 G, 8 MS 1/2 SINE
DROP 4" STAND ALONE, 39" TRANSIT DROP IN TRANSIT CASE
CUSTOMIZATION MILITARY CONNECTORS, CUSTOM I/O, AND MORE.
