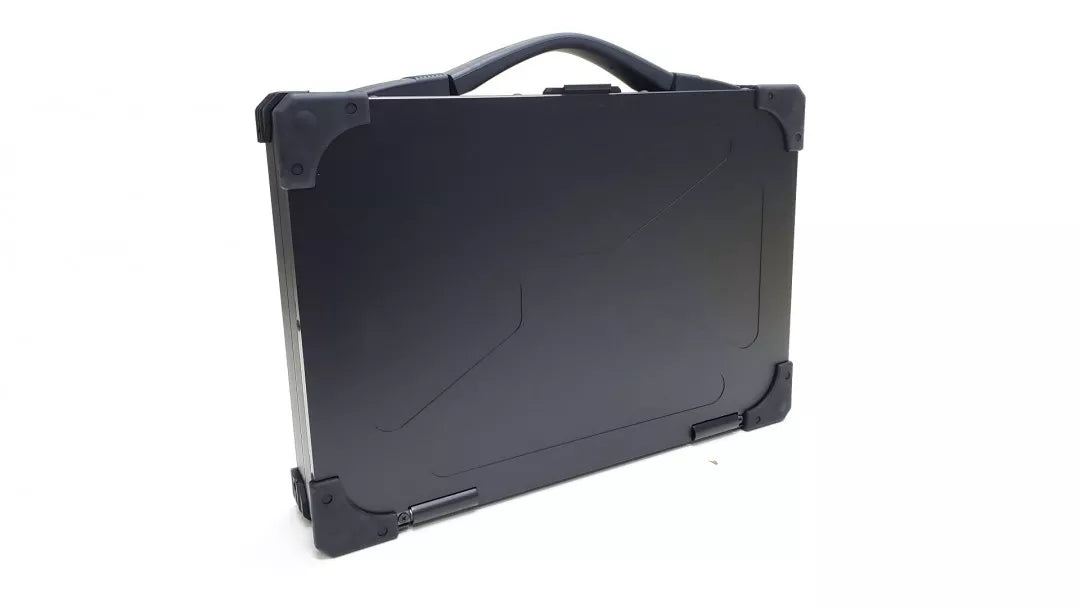

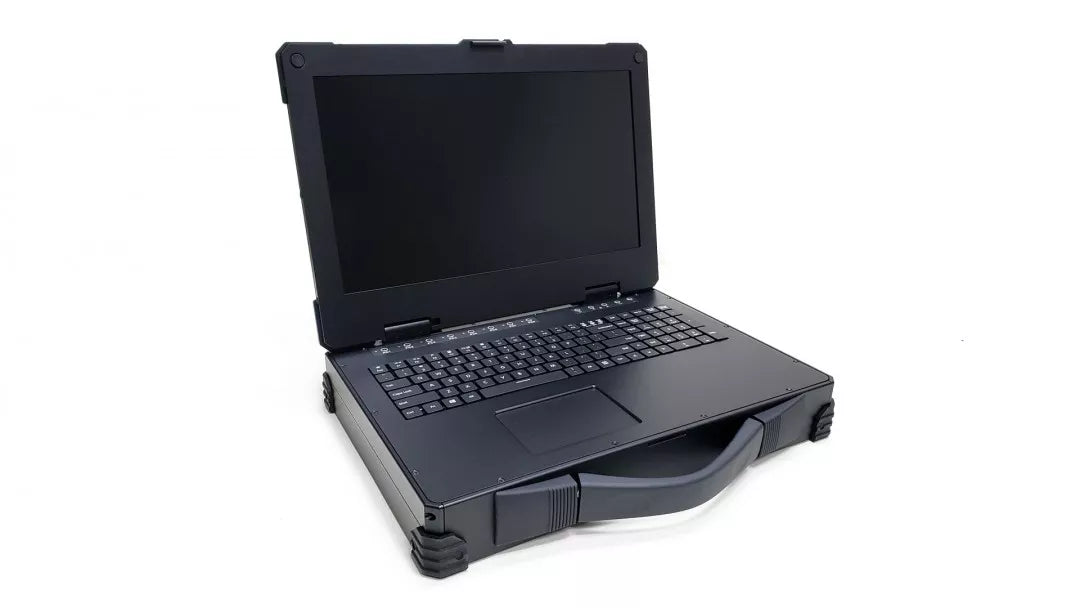

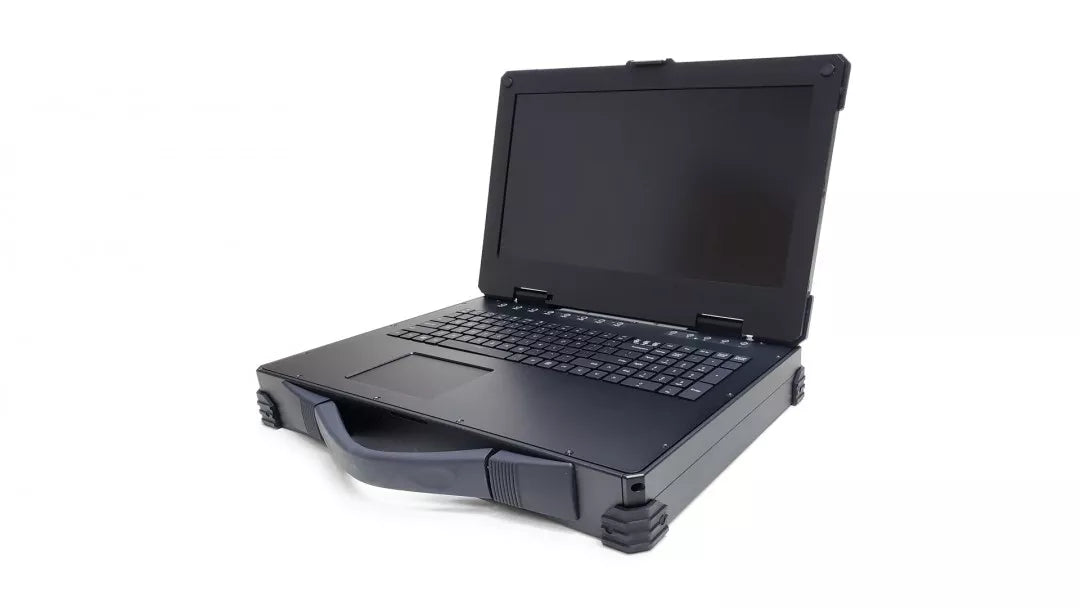

PMK, ACME Portable KVM Console Notebook style Remotely Control (Cat5) KVM system 17.3" LCD Monitor@ 1920x1080, Keyboard 8 Port KVM, VGA/DVI/DP (USB) Interface
PMK, ACME Portable KVM Console Notebook style Remotely Control (Cat5) KVM system 17.3" LCD Monitor@ 1920x1080, Keyboard 8 Port KVM, VGA/DVI/DP (USB) Interface
Couldn't load pickup availability
Please note: Customization is available for the PMK unit. PMK has 8 ports but only comes with 4x VGA dongles. These dongles can be changed to DVI, HDMI or DP but will have a service charge of $25. New dongles will cost $125 each.

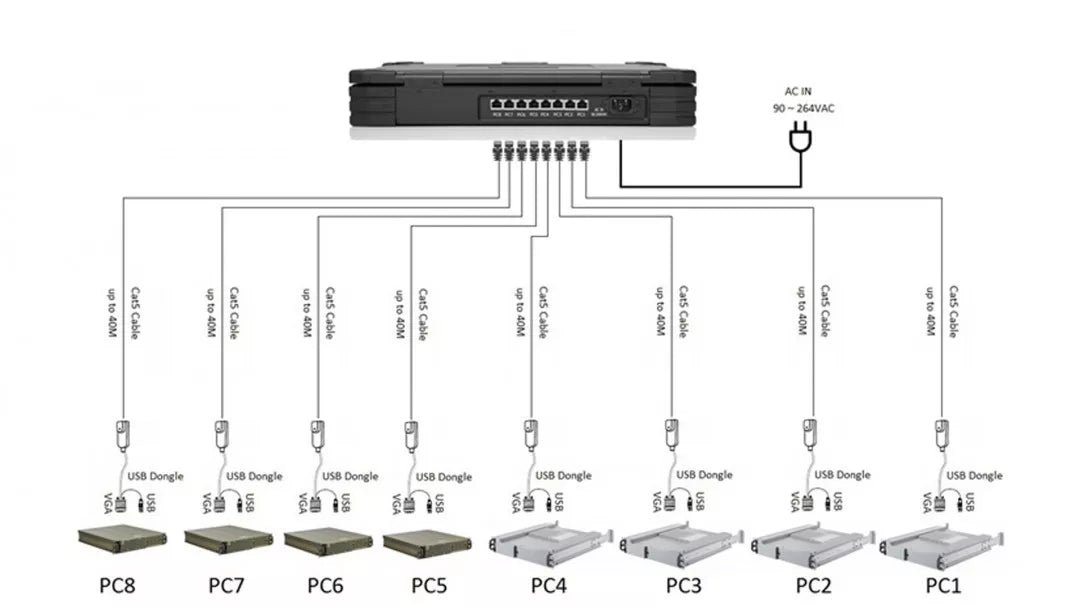

The PMK enables users access up to eight computers, servers, or KVM switches. Set your PMK at a convenient and suitable control field. With this unit, you can remotely control systems up to 130 feet.
The PMK allow you to mix and match a variety of sources, and control of them from one keyboard and one Touch PAD. The PMK support a variety of video inputs from DisplayPort, HDMI, DVI, & VGA in Full HD.
| PRODUCT | PMK |
|---|---|
| DISPLAY | 17.3" FULL HD 1920 X 1080 |

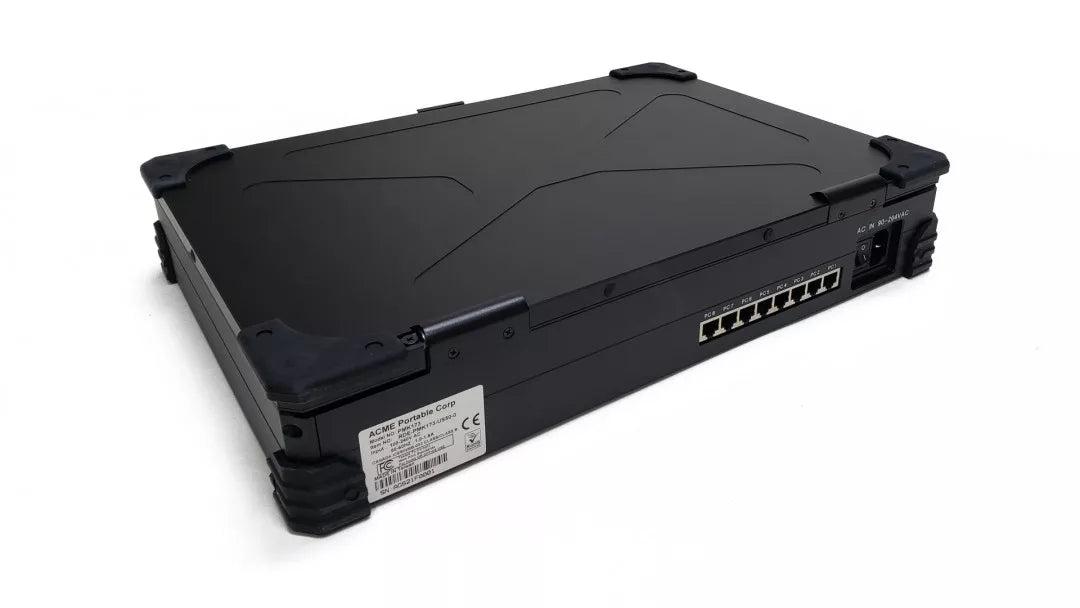

| PORTS | 8X RJ-45 PORTS |
| TEMPERATURE | OPERATING: 0 ~ 50°C, STORAGE: -20 ~ 60°C |
| HUMIDITY | 0 ~ 80%, NON-CONDENSING |
| DIMENSIONS | WITHOUT HANDLE: HEIGHT: 17.4" (443MM), DEPTH: 12.2" (309.5MM), HEIGHT: 3.26" (83MM) |

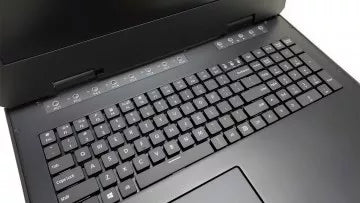

| KEYBOARD & MOUSE | USB KEYBOARD & MOUSE EMULATION |
| PORT SELECTION | PUSH BUTTON |
| HOUSING | ALUMINIUM |
| INCLUDED ACCESSORIES | 4X RJ-45 TO VGA/USB ADAPTERS, 4X 6' CAT5 CABLES, 1X POWER CORD |
| OPTIONAL ACCESSORIES | CAT5 KVM DVI USB T-DONGLE (PN: 83053-29081-00), CAT5 KVM HDMI USB T-DONGLE (PN: 83053-29082-00), CAT5 KVM DISPLAYPORT USB T-DONGLE (PN: 83053-29083-00) |
| POWER SUPPLY | 90-264VAC OPTIONAL BATTERY UPGRADE: 12-HOUR OPERATING TIME WITH 2 BATTERIES (currently not available) |
| CUSTOMIZATION | MILITARY CONNECTORS, CUSTOM I/O, AND MORE. |
Inquiries regarding all ACME PORTABLE products
Please email us info@ramplus.com
