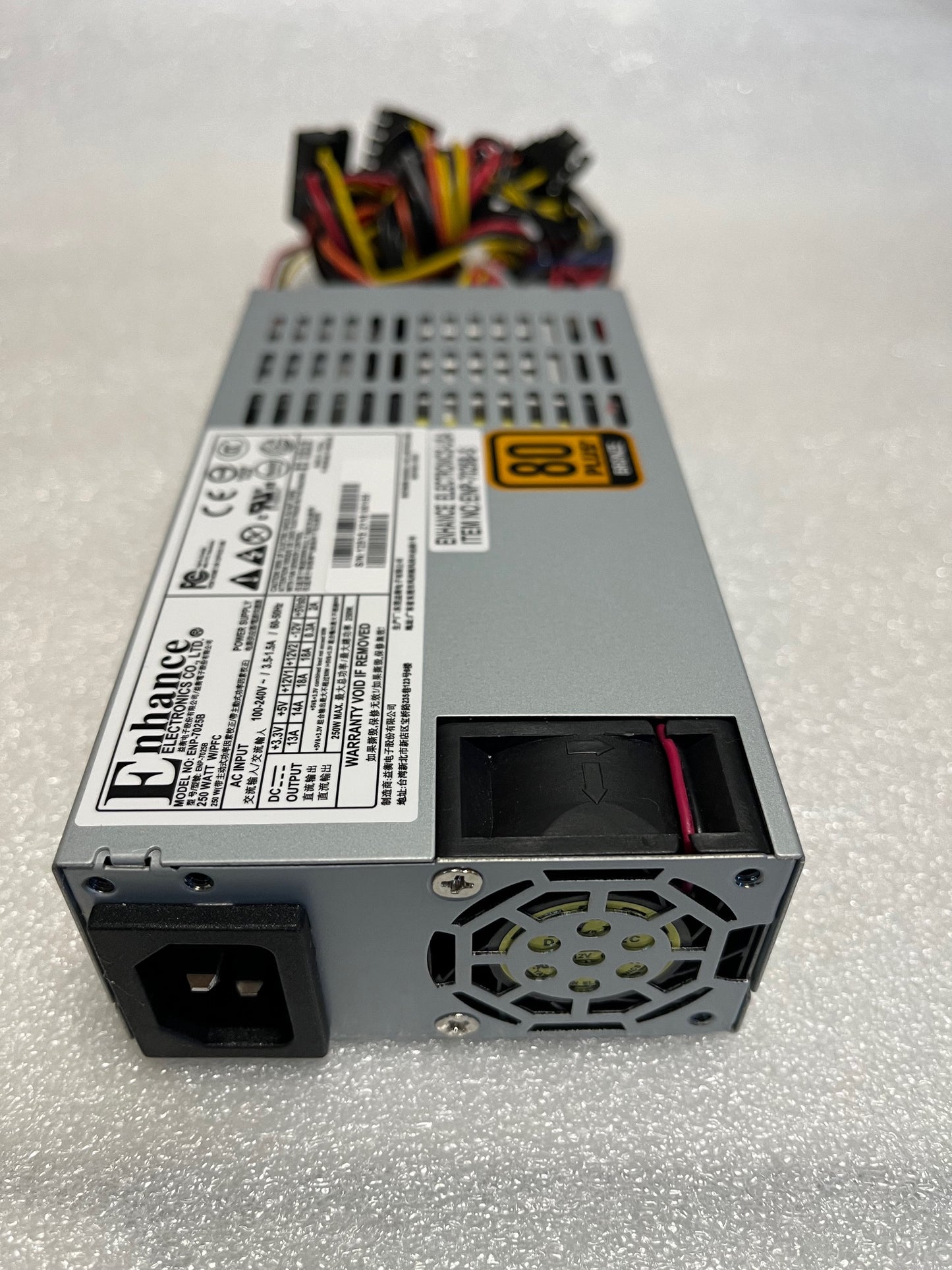

• ENP7025B Flex ATX 1U Power Supply/ Front View

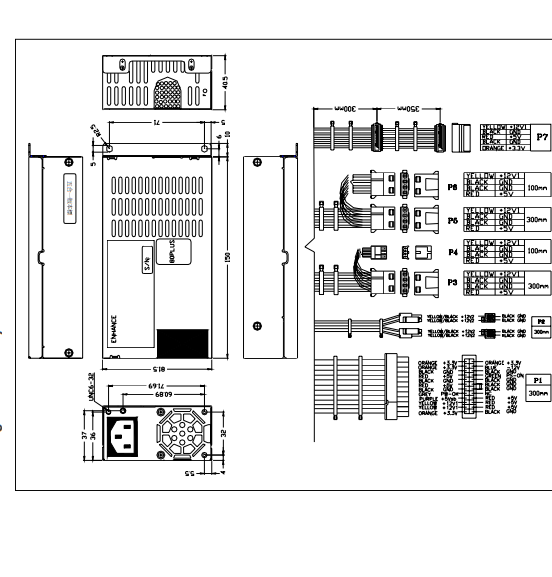

  • ENP7025B Flex ATX 1U Power Supply/ schematics
  • ENP7025B Flex ATX 1U Power Supply/ specification
  • ENP7025B Flex ATX 1U Power Supply/ back View
1 4

Ram Plus Computers, Inc.

ENP-7025B, Original Enhance Electronics 250W Flex ATX Computer PC Desktop/ 1U Power Supply, 80 Plus Bronze ROHS

ENP-7025B, Original Enhance Electronics 250W Flex ATX Computer PC Desktop/ 1U Power Supply, 80 Plus Bronze ROHS

$74.75 USD
$74.75 USD
Sale Sold out
Shipping calculated at checkout.
Save 5% when purchase quantity 10 or more, enter code Enhance_5 during check out.

Original ENP-7025B, Enhance Electronics 250W Flex ATX Computer PC Desktop/ 1U Power Supply, 80 Plus Bronze ROHS

Some shipping variants are ENP-7025B, or ENP-7025B-S (-S designation indicates silver casing, since there is also a black casing version which we do not carry)

Output Wattage:
 250W
Mechanical Type: Flex1U
Dimension Height:
Length:
Width:
40.5mm / 1.59"
150mm / 5.9"
81.5mm / 3.2"
Input Spec: Voltage:
Frequency:
Current:
Hold up Time:
Efficiency:
90~264Vac
47~63Hz
8A@100V / 4A@240V
>16ms@Full Load
>82%


Output Voltage
+3.3V +5V +12V1 +12V2 -12V +5Vsb
Max Current
13A 14A 18A 18A 0.3A 2A
Combined Load
+3.3V & +5V: 80W +12V1 &+12V2: 240W
