Ram Plus Computers, Inc.

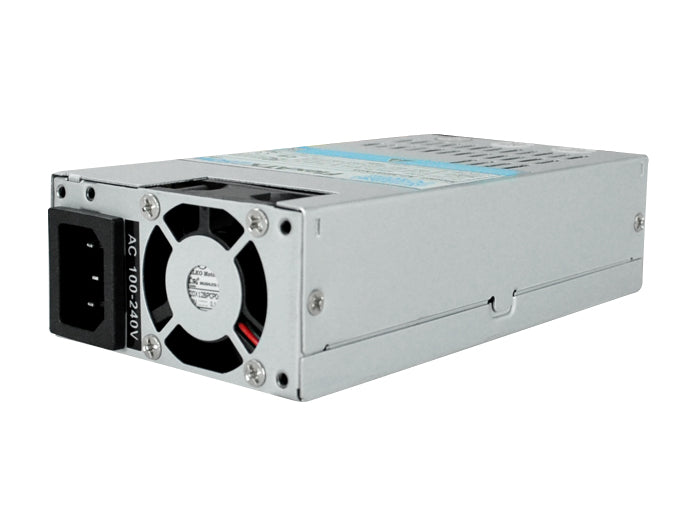

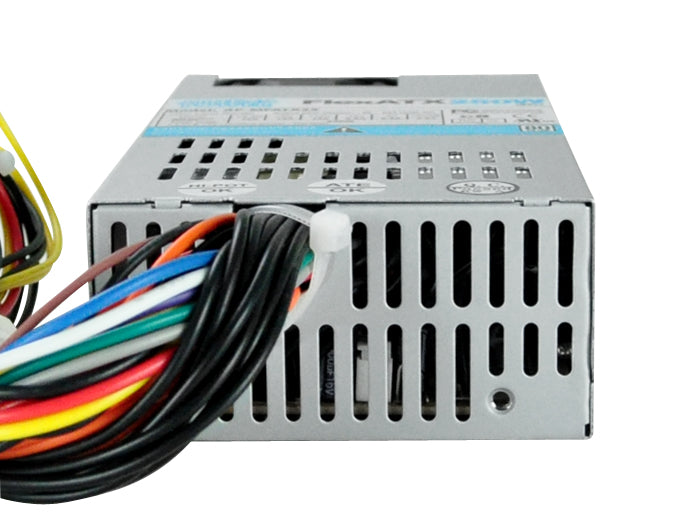

MFATX25, Athena Power 250W Flex ATX Computer Power Supply Active PFC Remote ON/ OFF

MFATX25, Athena Power 250W Flex ATX Computer Power Supply Active PFC Remote ON/ OFF

Regular price $68.75 USD
Regular price Sale price $68.75 USD
Sale Sold out
Shipping calculated at checkout.

Click here to view cross reference compatibility guide to Athena AP-MFATX25 power supply.

Model AP-MFATX25
Product Category Flex ATX
Product Sub Category FLEX ATX
Output Power 250 Watts
Input Votage 88 ~ 264 Volts AC
Frequency 60/50 Hz
Temperature Range Operating 0° C ~ +25° C on 250W Output Load or 0° C ~ +50° C on 220W Output Load ; Storage & Shipping -20° C ~ +80° C
MTBF 100,000 Hours on Maximum Load at +25°C
Rise time Less than 20 ms
Hold-up Time 17 ms Minimum at Nominal Input Voltage
Output
Voltage +5V -5V +12V1 +12V2 +3.3V -12V +5V-SB
Current 12A 0.5A 13A 13A 12A 0.5A 2.5A
Connectors
ATX Connector 24 (20+4) Pin x 1
P4-12V 4 Pin x 1
PCIE 6 Pin x 1
SATA 15 Pin x 2
Molex 4 Pin x 2
Floppy 4 Pin x 1
Dimension (L x W x H) 150 x 81.5 x 40.5 mm / 6 x 3.2 x 1.59 in
