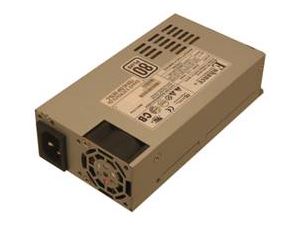

ENP-7660B, Original Enhance Electronics 600W Flex ATX Computer PC Desktop/ 1U Power Supply, 80 Plus Bronze ROHS

ENP-7660B, Original Enhance Electronics 600W Flex ATX Computer PC Desktop/ 1U Power Supply, 80 Plus Bronze ROHS

$154.75 USD
$154.75 USD
Sale Sold out
Shipping calculated at checkout.

Save 5% when purchase quantity 10 or more, enter code Enhance_5 during check out.

ENP-7660B, Original Enhance Electronics 600W Flex ATX Computer PC Desktop/ 1U Power Supply, 80 Plus Bronze ROHS

• 600W Output, Active PFC
• Protections: OVP, OPP, SCP, OTP
• Reliability: MTBF 100,000 hrs @ 25ºC, Full Load
• High Efficiency: Meet 80+ Platinum (92%@115Vac/50% Load) • Safety Approval: cUL, Nemko, CB

Output Wattage:
 600W

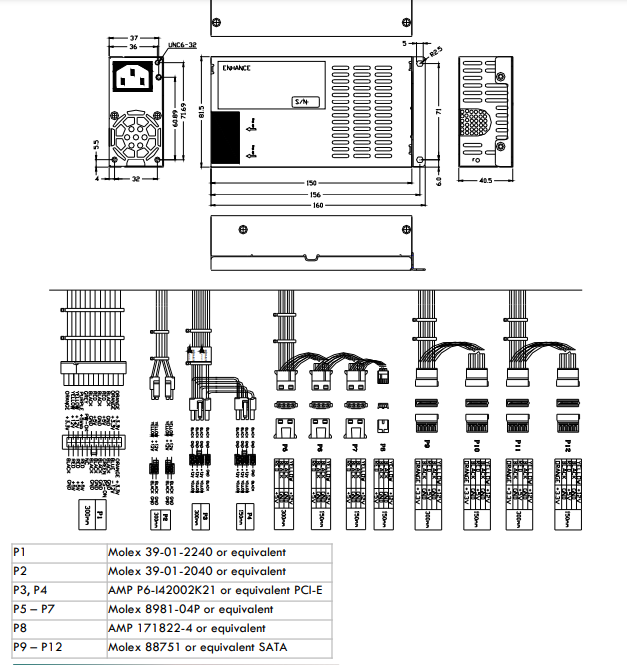

Mechanical Type: Flex1U
Dimension Height:
Length:
Width:
40.5mm / 1.59"
150mm / 5.9"
81.5mm / 3.2"
Input Spec: Voltage:
Frequency:
Current:
Hold up Time:
Efficiency:
90~264Vac
47~63Hz
8A@100V / 4A@240V
>16ms@Full Load

>89%


Output Voltage
+3.3V +5V +12V -12V +5Vsb
Max Current
15A 15A 50A 0.3A 2.5A
Combined Load
+3.3V & +5V: 80W
