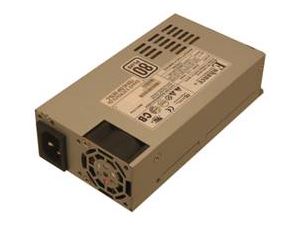

ENP-7030B, Original Enhance Electronics 300W Flex ATX Computer PC Desktop/ 1U Power Supply, 80 Plus Bronze ROHS

ENP-7030B, Original Enhance Electronics 300W Flex ATX Computer PC Desktop/ 1U Power Supply, 80 Plus Bronze ROHS

$88.75 USD
$88.75 USD
Sale Sold out
Shipping calculated at checkout.

Save 5% when purchase quantity 10 or more, enter code Enhance_5 during check out.

ENP-7030B, Original Enhance Electronics 300W Flex ATX Computer PC Desktop/ 1U Power Supply, 80 Plus Bronze ROHS

• 300W Output, Active PFC
• Protections: OVP, OPP, SCP, OTP
• Reliability: MTBF 100,000 hrs @ 25ºC, Full Load
• High Efficiency: 82% @ 115Vac, Full Load
• Safety Approval: cUL, Nemko, CB

Output Wattage:
 300W

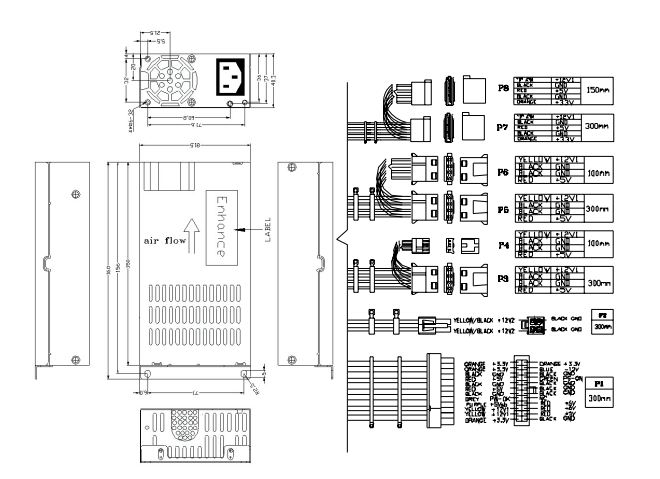

Mechanical Type: Flex1U
Dimension Height:
Length:
Width:
40.5mm / 1.59"
150mm / 5.9"
81.5mm / 3.2"
Input Spec: Voltage:
Frequency:
Current:
Hold up Time:
Efficiency:
90~264Vac
47~63Hz
5A@100V / 2.5A@240V
>16ms@Full Load
>82%
Output Voltage
+3.3V +5V +12V1 +12V2 -12V +5Vsb
Max Current
13A 14A 20A 20A 0.3A 2A
Combined Load
+3.3V & +5V: 80W +12V1 &+12V2: 275W
