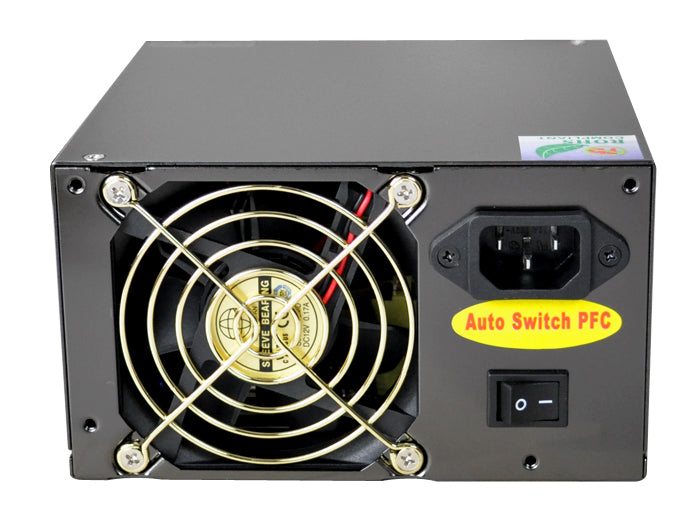

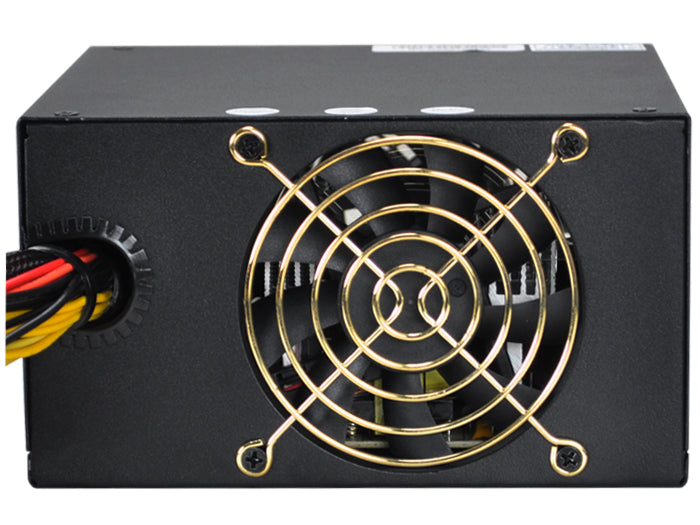

AP-P4ATX70FEP8, Athena Power PS2 700W Dual Fan ATX Active PFC Power Supply

AP-P4ATX70FEP8, Athena Power PS2 700W Dual Fan ATX Active PFC Power Supply

Regular price $138.75 USD
Regular price Sale price $138.75 USD
Sale Sold out
Shipping calculated at checkout.

AP-P4ATX70FEP8 supports Core 2 Dual & Quad Core Processors plus it's Nvidia SLI and Quad SLi compatible. Dual EPS-12V output supports the Intel Skulltrail platform systems.

Model AP-P4ATX70FEP8
Product Category PS2
Product Sub Category PS2 Power Supplies
Output Power 700 Watts
Input Votage 88 ~ 264 Volts AC
Frequency 47/63 Hz
Temperature Range Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C
MTBF 100,000 Hours on Maximum Load at +25°C
Rise time Less than 20 ms
Hold-up Time 17 ms Minimum at Nominal Input Voltage
Output
Voltage +5V +3.3V +12V1 +12V2 -12V +5VSB
Current 22A 20A 28A 28A 1.0A 3.5A
Connectors
ATX 24 (20+4) Pin x 1
P4-12V 4 Pin x 1
EPS 12V 8 Pin x 2
PCIE 6 Pin x 2
PCIE 6+2 Pin x 2
SATA 15 Pin x 6
Molex 4 Pin x 2
Floppy 4 Pin x 1
Dimension (L x W x H) 158 x 146 x 82 mm/ 6.25 x 5.75 x 3.25 in
