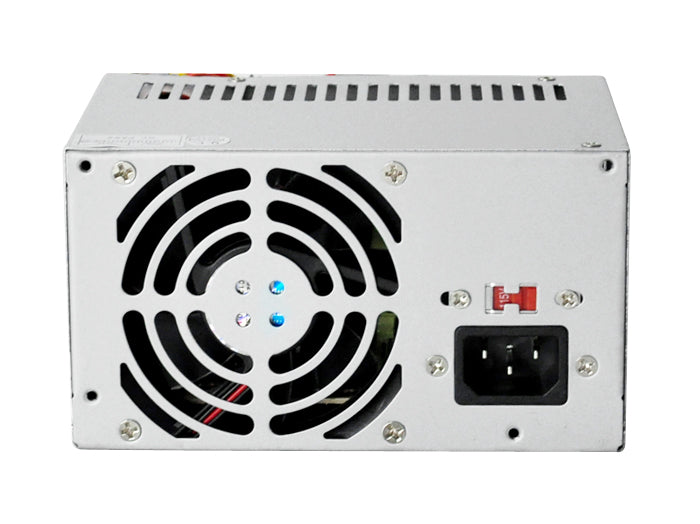

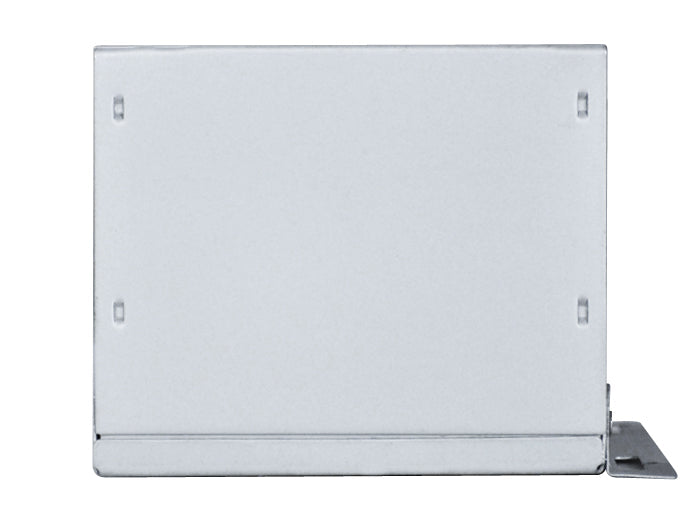

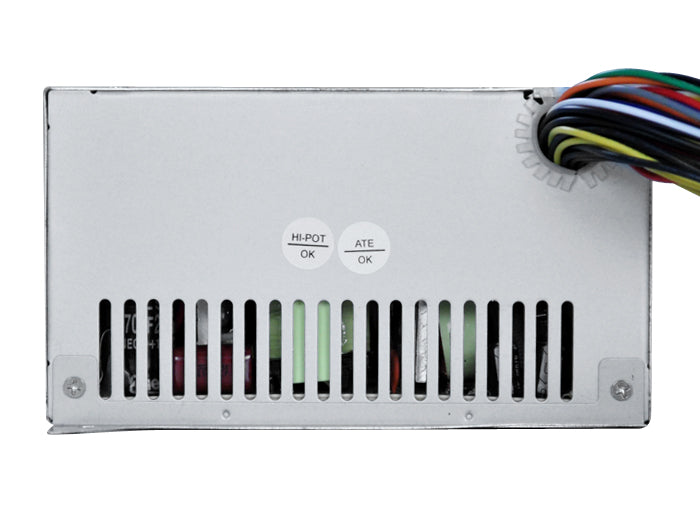

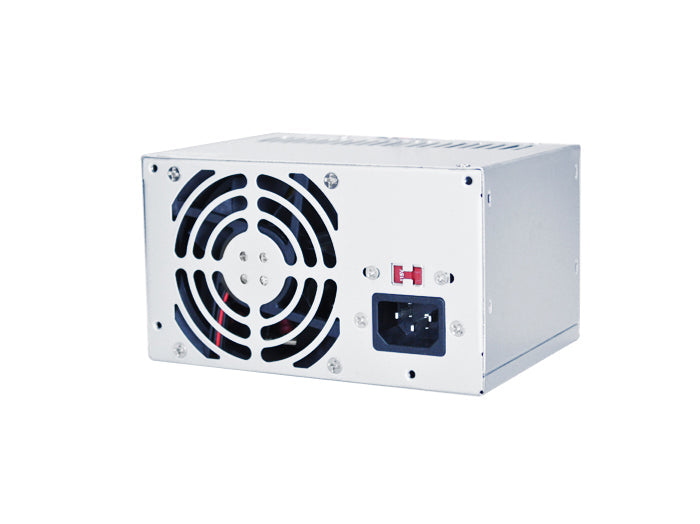

Quantity 10 of AP-MPS3ATX30, Athena Hercules 300 Micro PS3 300W ATX PC Computer Power supply (Copy)

Quantity 10 of AP-MPS3ATX30, Athena Hercules 300 Micro PS3 300W ATX PC Computer Power supply (Copy)

$465.00 USD
$465.00 USD
Sale Sold out
Shipping calculated at checkout.

Price Includes Quantity 10 of AP-MPS3ATX30, Athena Hercules 300 Micro PS3 300W ATX PC Computer Power supply

Model AP-MPS3ATX30
Product Category Micro PS3
Product Sub Category Hercules Series
Output Power 300 Watts
Input Votage 115/230 Volts AC
Frequency 47/63 Hz
Temperature Range Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C
MTBF 100,000 Hours on Maximum Load at +25°C
Rise time Less than 20 ms
Hold-up Time 17 ms Minimum at Nominal Input Voltage
Output
Voltage +5V -5V +12V1 +12V2 +3.3V -12V +5V-SB
Current 13A 0.5A 14A 14A 13A 0.5A 2.5A
Connectors
ATX Connector 24 (20+4) Pin x 1
P4-12V 4 Pin x 1
SATA 15 Pin x 2
Molex 4 Pin x 3
Floppy 4 Pin x 1
Aux 6 Pin x 1
HP Video 4 Pin x 1
Dimension (L x W x H) 101 x 148 x 83 mm/ 4 x 5.86 x 3.3 in
