Ram Plus Computers, Inc.

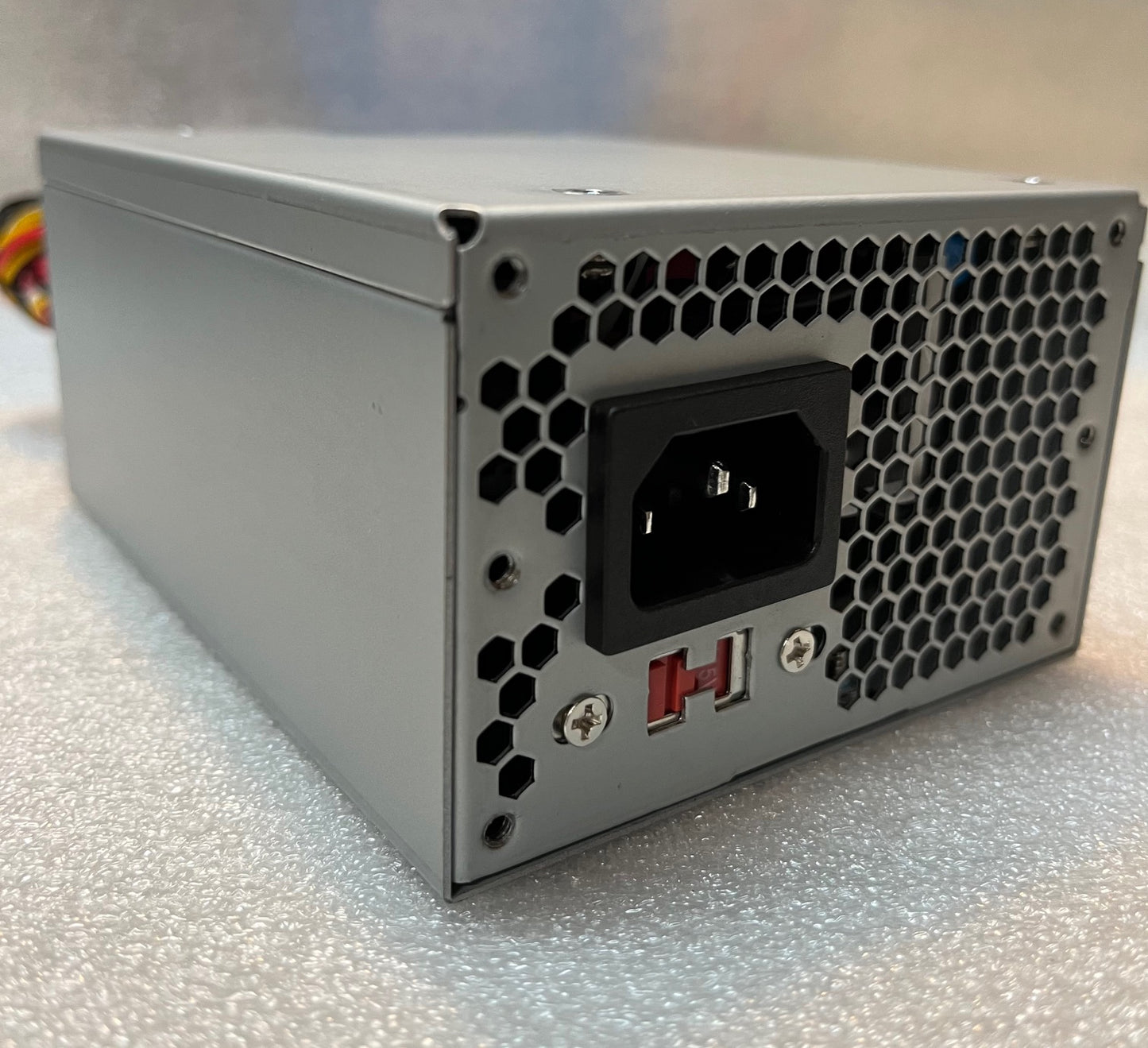

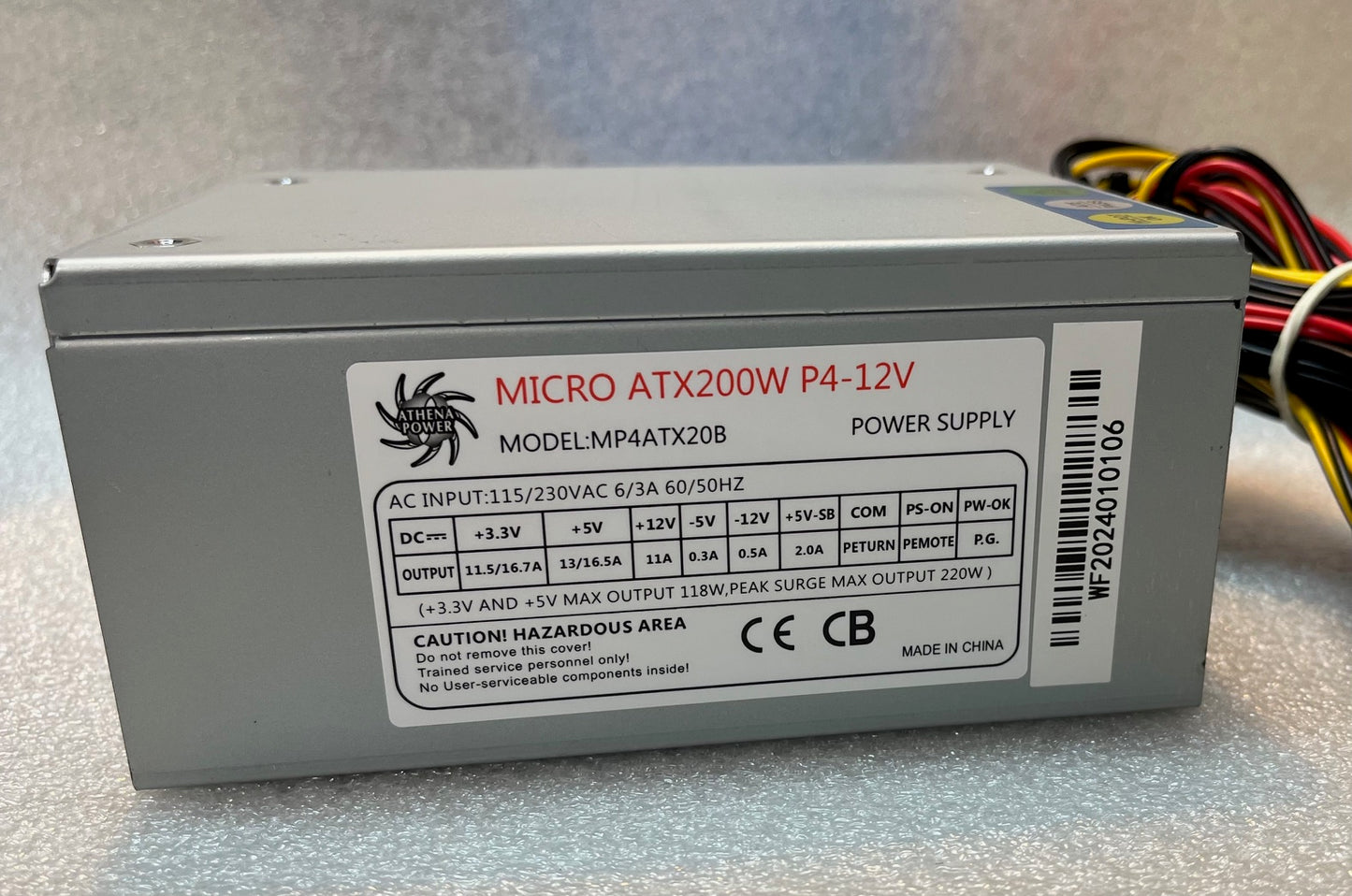

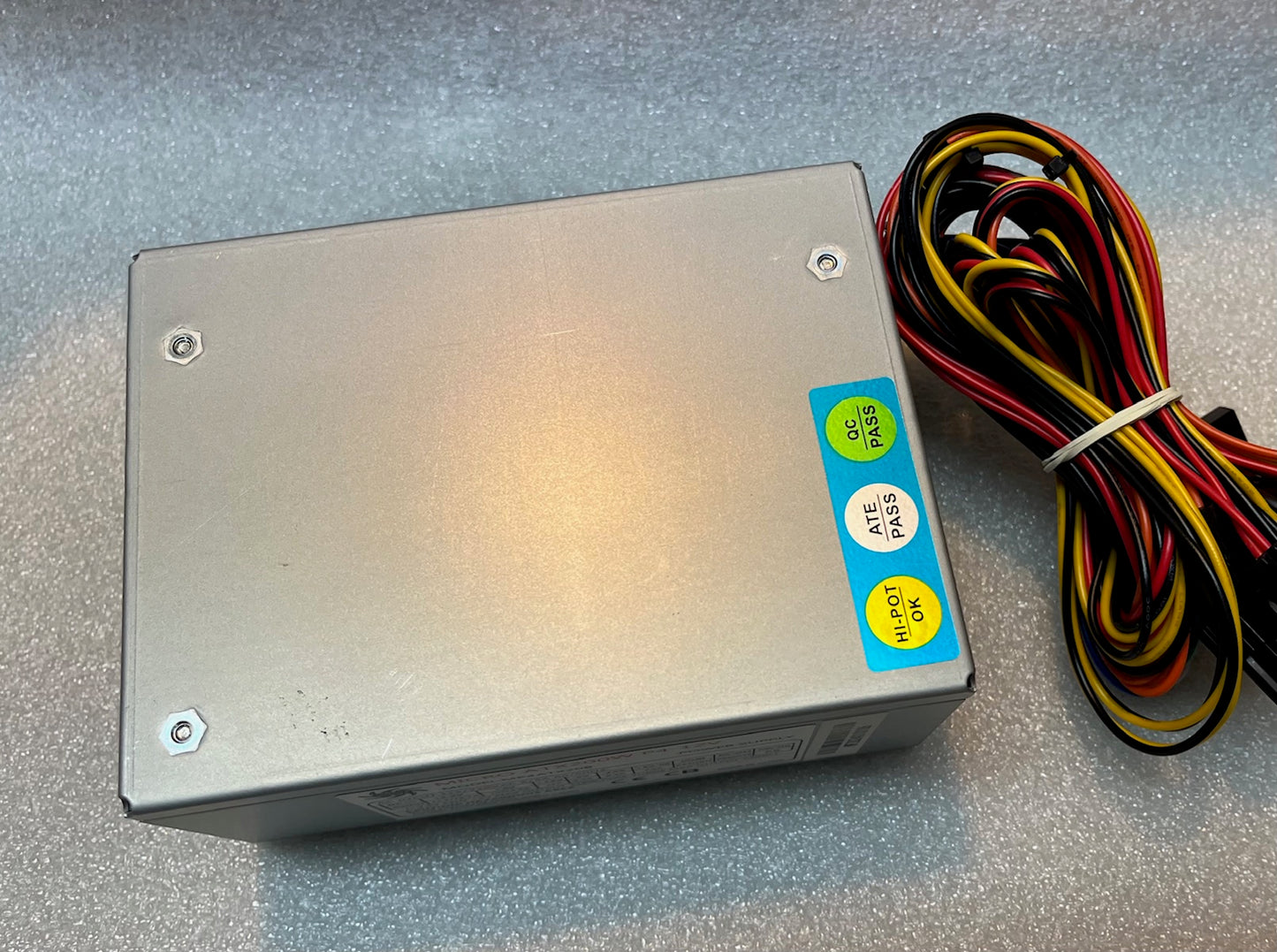

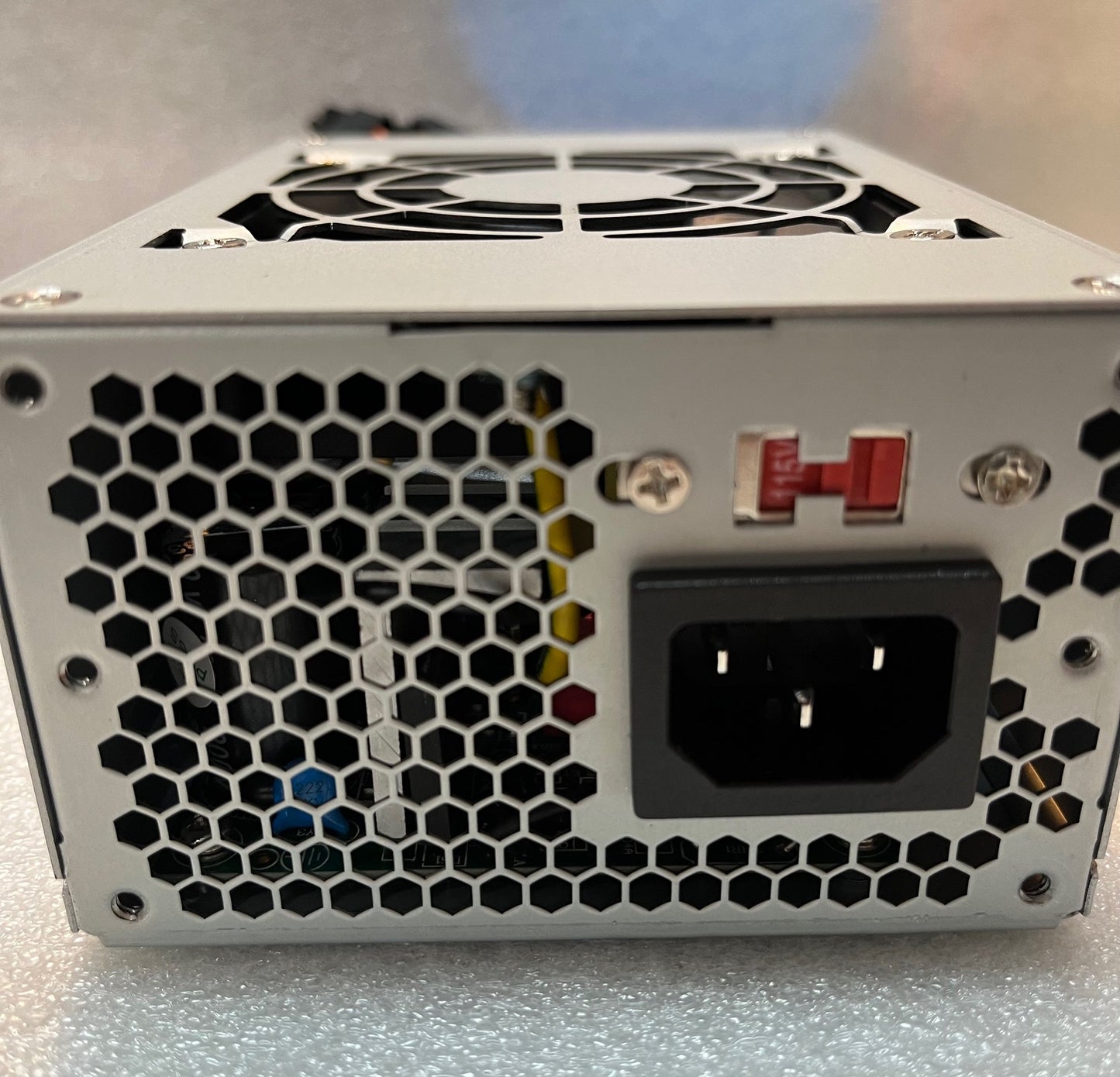

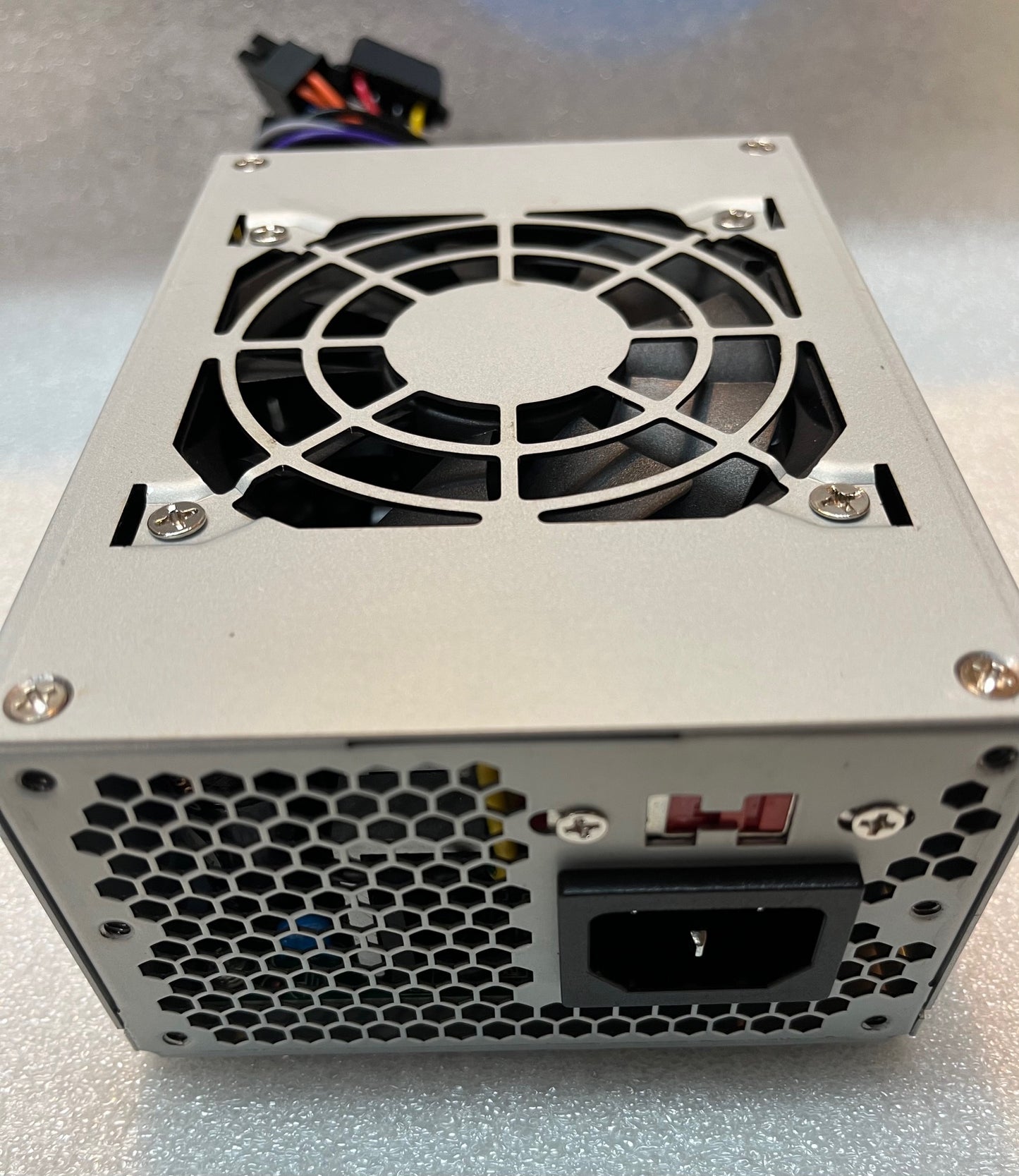

AP-MP4ATX20B, SFX-OEM200W, Athena Apollo 200 MP4ATX20B Micro ATX mATX SFX 200W PC Computer Power supply

AP-MP4ATX20B, SFX-OEM200W, Athena Apollo 200 MP4ATX20B Micro ATX mATX SFX 200W PC Computer Power supply

Regular price $52.75 USD
Regular price Sale price $52.75 USD
Sale Sold out
Shipping calculated at checkout.

AP-MP4ATX20B, SFX-OEM200W
Athena Apollo 200 Micro ATX mATX SFX 200W PC Computer Power supply

Model AP-MP4ATX20/B or MP4ATX20B
Product Category Micro SFX
Product Sub Category Apollo Series
Output Power 200 Watts
Input Votage 115/230 Volts AC
Frequency 60/50 Hz
Temperature Range Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C
MTBF 100,000 Hours on Maximum Load at +25°C
Rise time Less than 20 ms
Hold-up Time 17 ms Minimum at Nominal Input Voltage
Output
Voltage +5V -5V +12V1 +12V2 +3.3V -12V +5V-SB
Current 12A 0.5A 12A 12A 12A 0.5A 2.5A
Connectors
ATX Connector 24 (20+4) Pin x1
P4-12V 4 Pin x 1
Molex 4 Pin x 4
Floppy 4 Pin x 1
HP Video 4 Pin x 1
Dimension (L x W x H) 5.25 x 4 x 2.5 in
